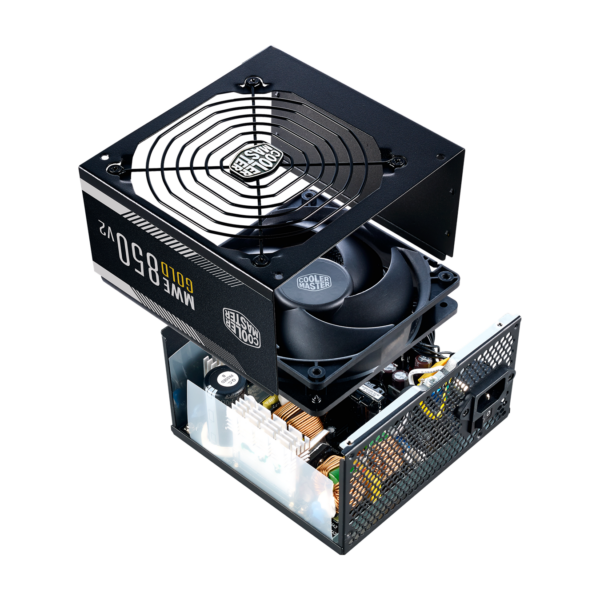

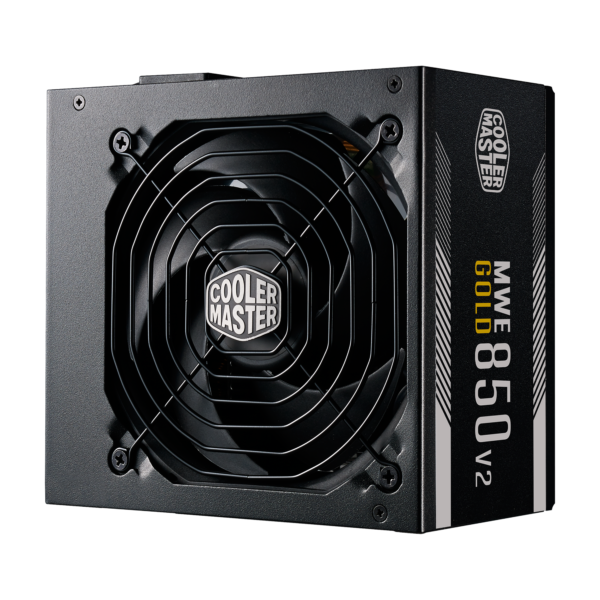

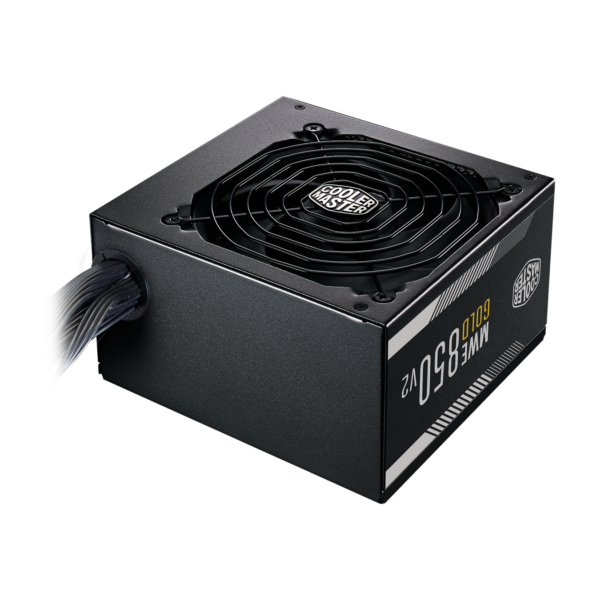

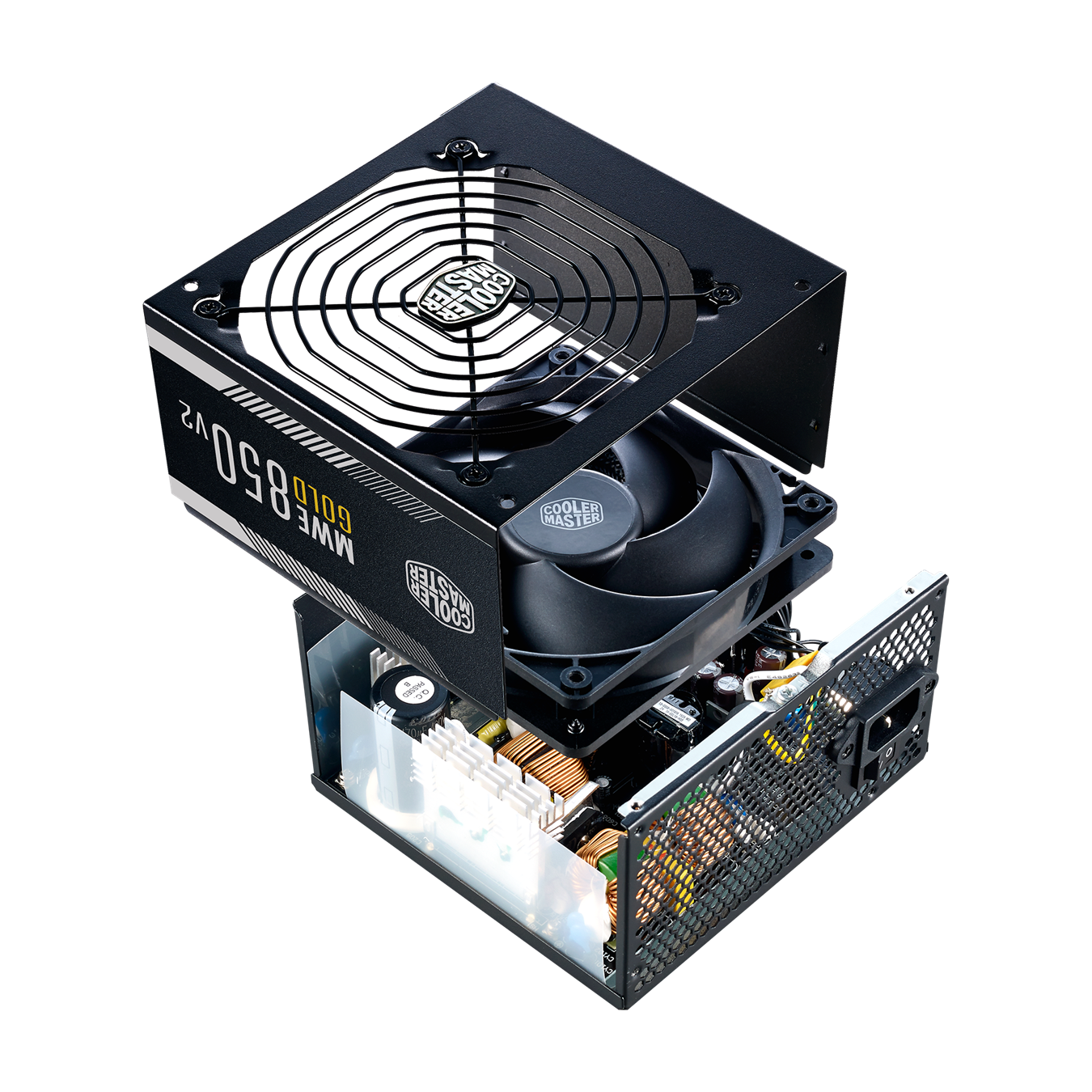

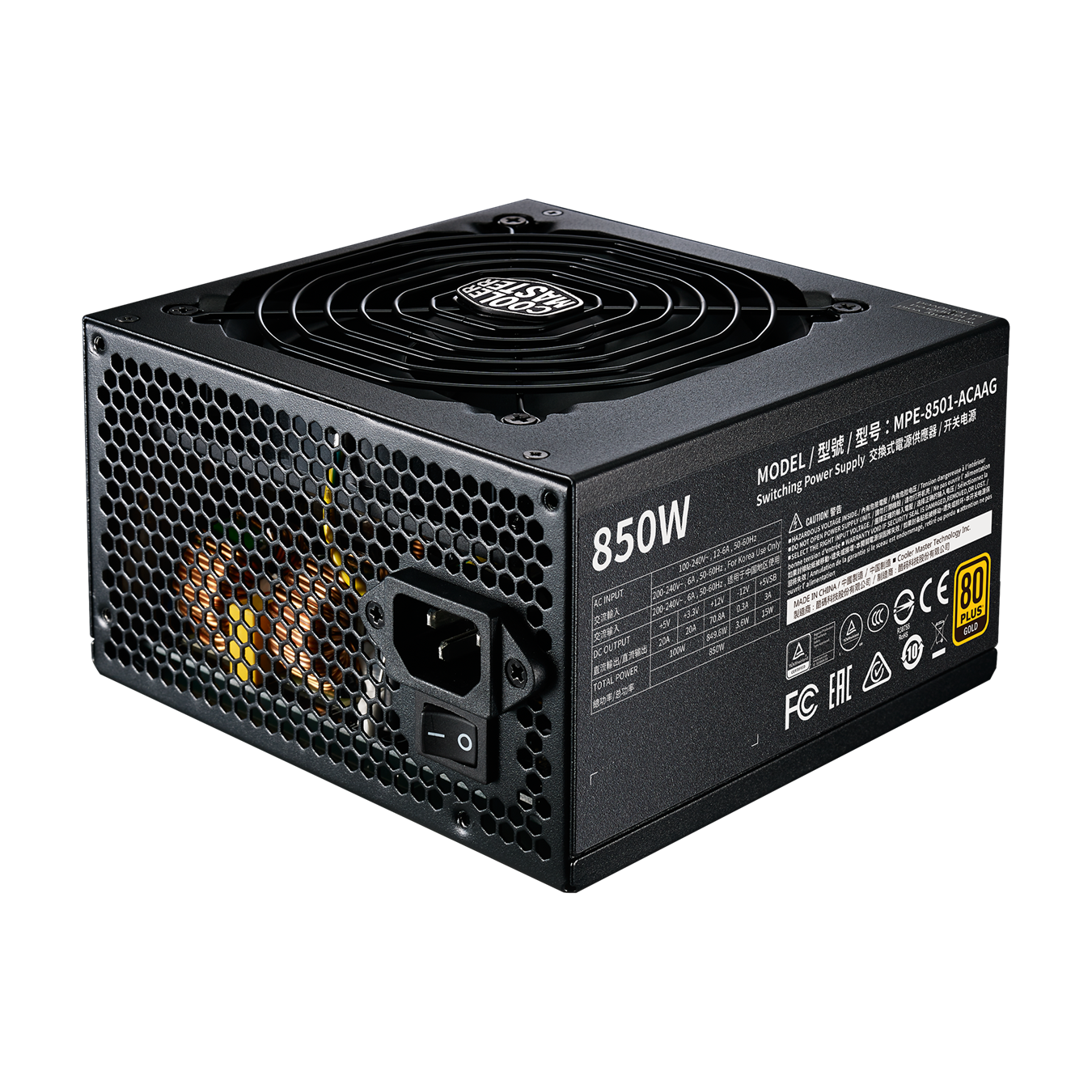

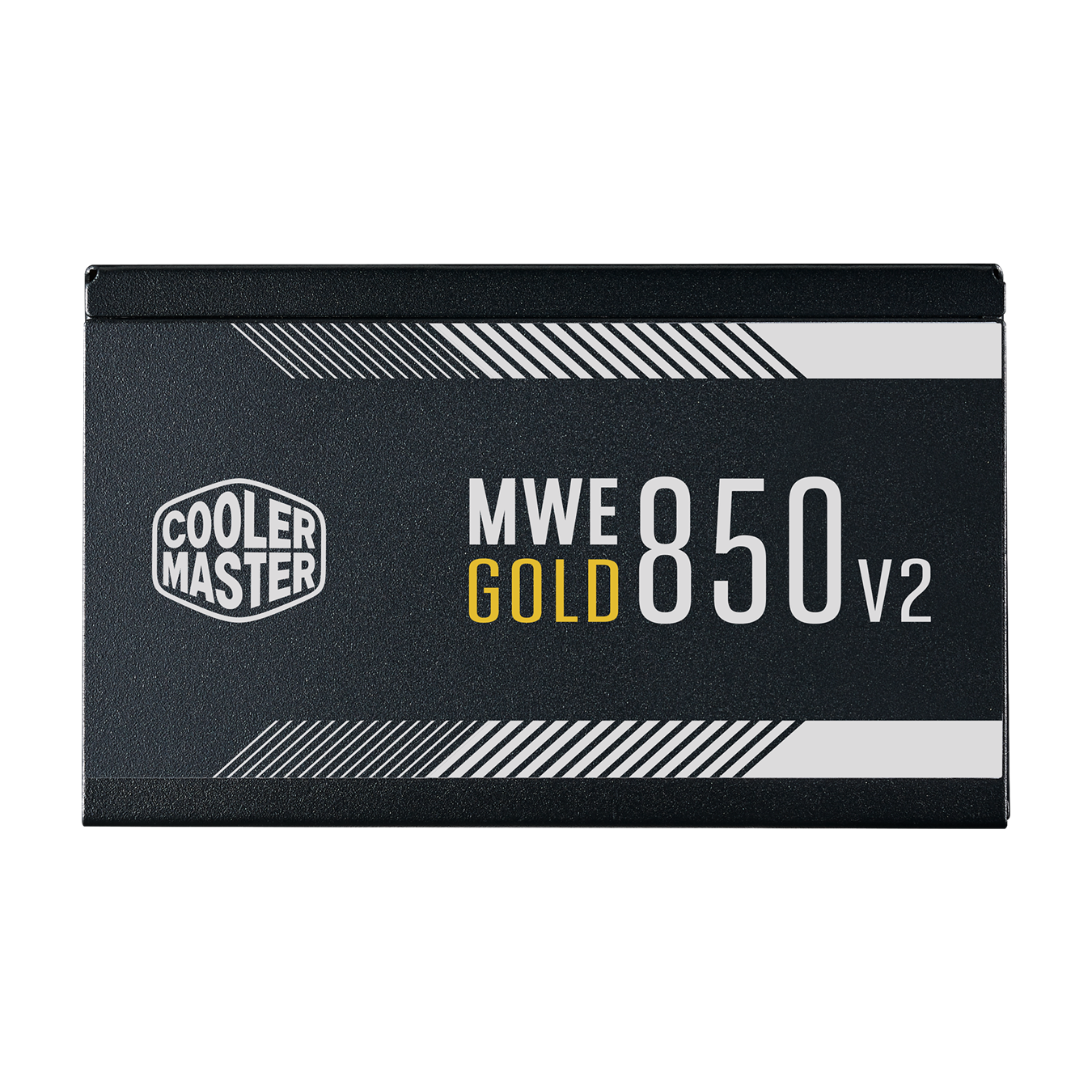

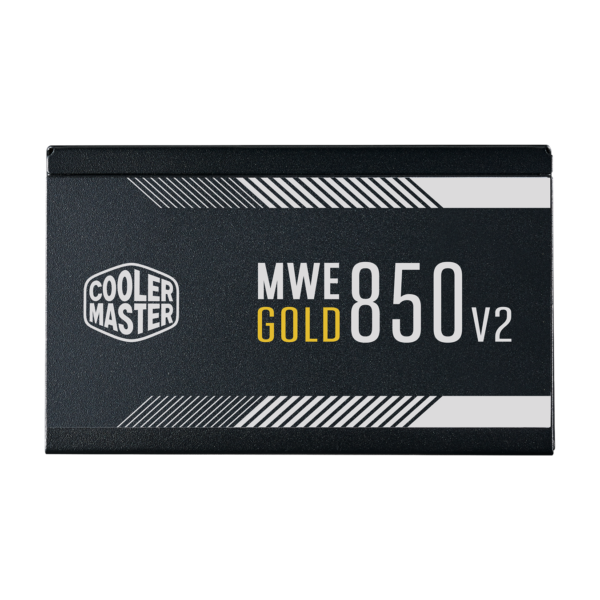

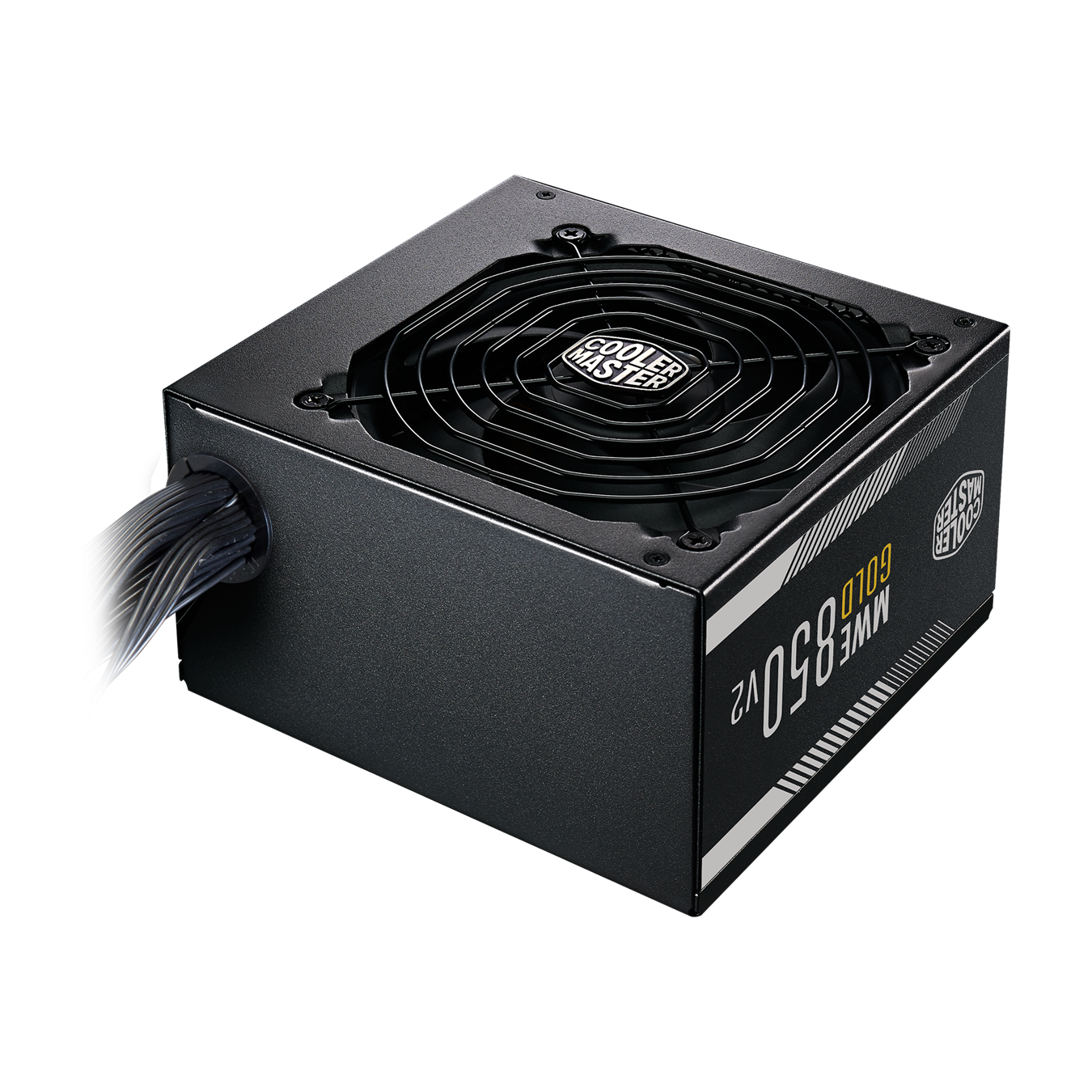

Cooler Master MWE Gold V2 850

Device Type: Power supply – active Power Factor Correction (PFC) – internal

Specification Compliance: ATX12V

PSU Form Factor: ATX

Input Voltage: AC 90-264 V

Frequency Required: 47 – 63 Hz

Power Output Connectors Details: 1 x power 24 pin ATX ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 4 pin internal power ¦ 12 x 15 pin Serial ATA power ¦ 1 x power 8 pin EPS12V

Output Voltage: +3.3, +5, ±12 V

Power Capacity: 850 Watt

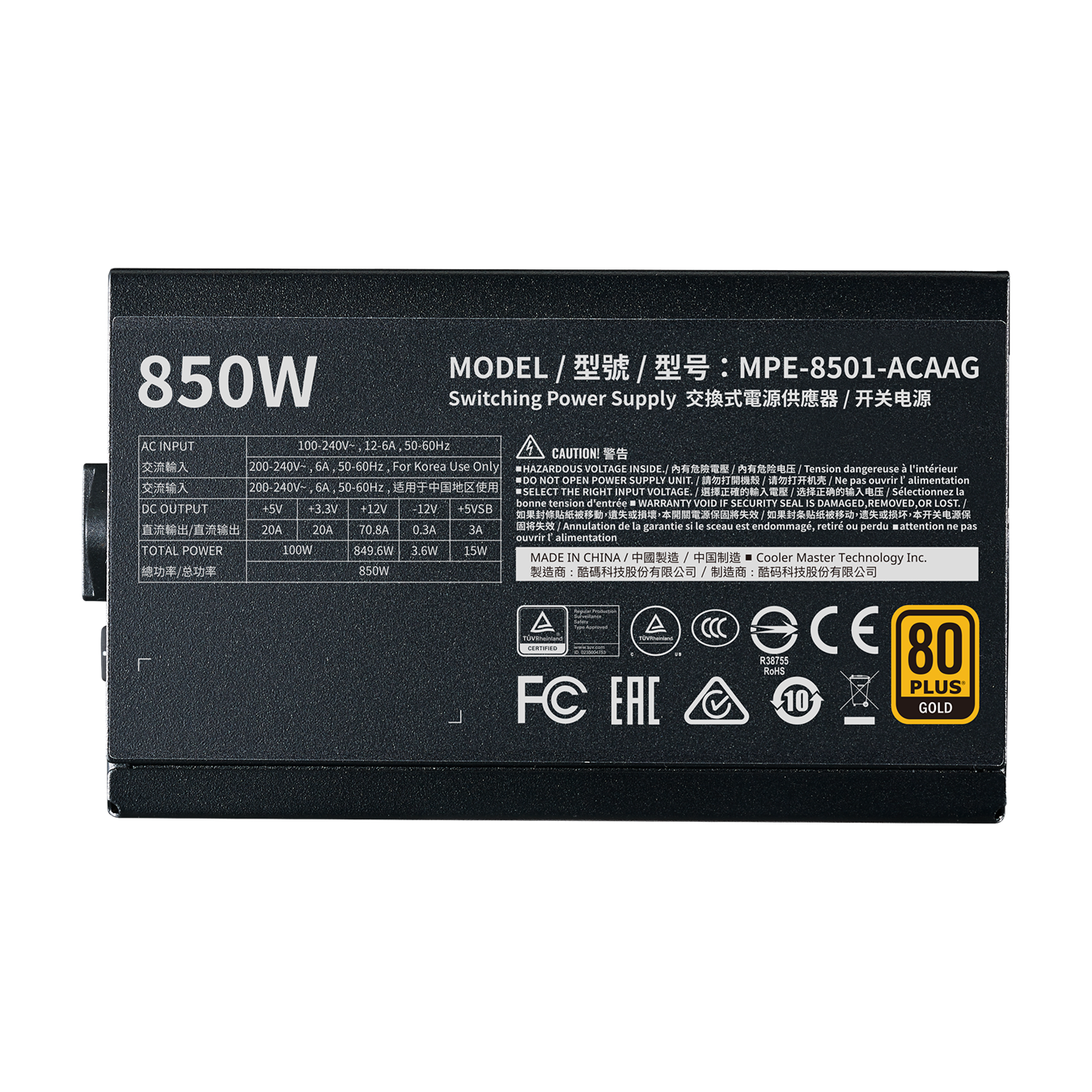

Output Current: +3.3V – 20 A ¦ +5V – 20 A ¦ +12V – 70.8 A ¦ -12V – 0.3 A ¦ +5VSB – 3 A

Efficiency: 90%

Modular Cable Management: Yes

80 PLUS Certification: 80 PLUS Gold

MTBF: 100,000 hours

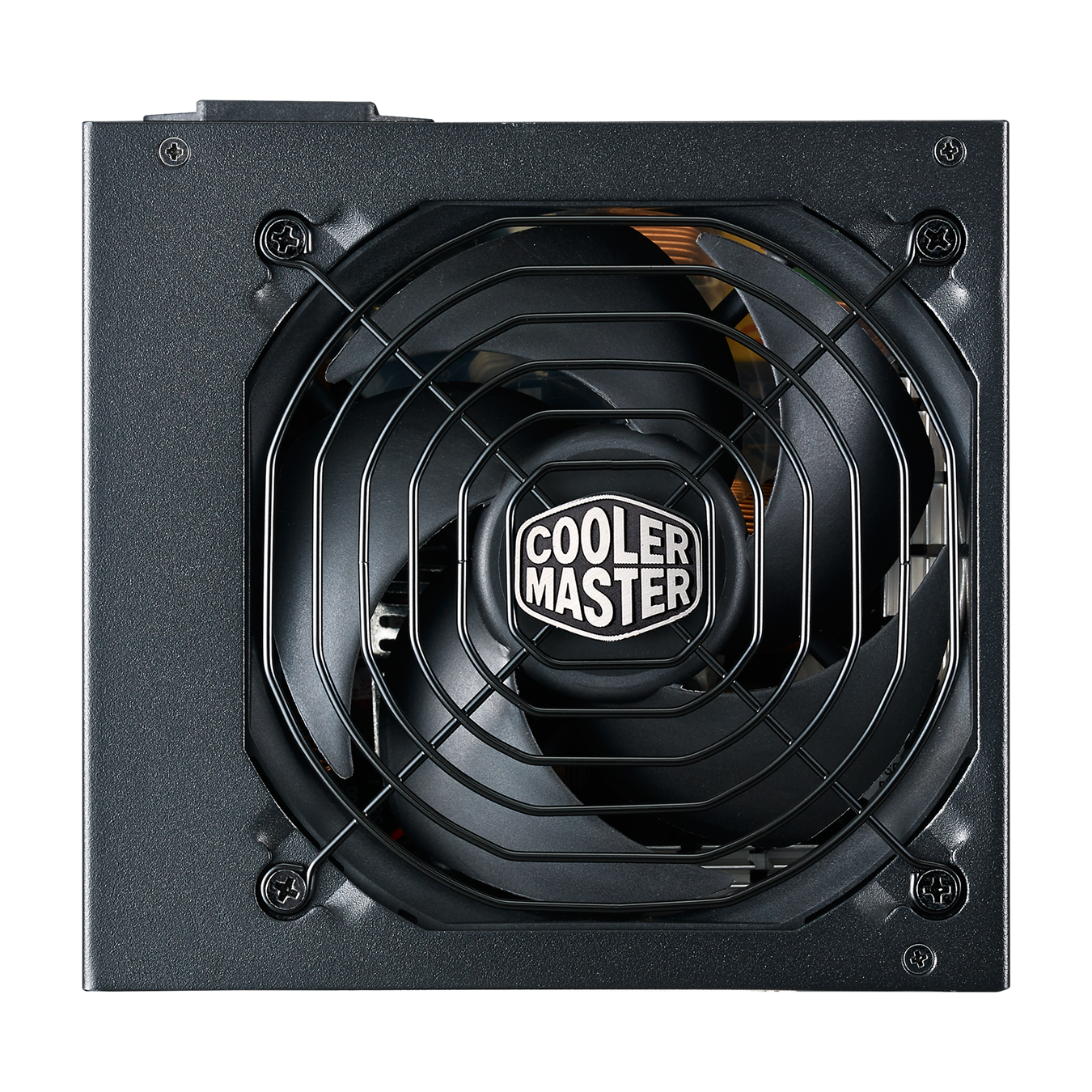

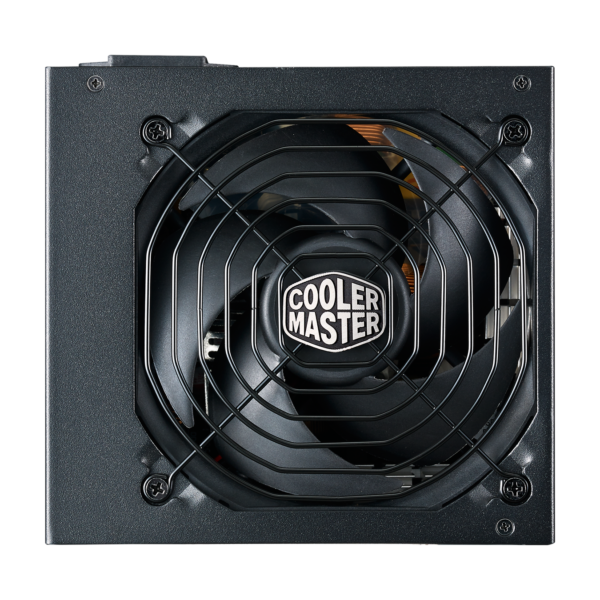

Cooling System: 120 mm fan

Features: Overheat protection, overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, hydrodynamic bearing cooling fan, fully modular

Compliant Standards: TUV, BSMI, CCC, FCC, cTUVus, EAC, RCM, ErP Lot 3 2014 Ready

Service & Support: Limited warranty – 5 years

Min Operating Temperature: 32 °F

Max Operating Temperature: 122 °F

Width: 5.9 in

Depth: 6.3 in

Height: 3.4 in
